Module 4 - Data Manipulation Language -Part 2

2026-02-07 21:03

Tags: #ADV_DBMS

Author: Duke Hsu

Module Intended Learning Outcome

Construct single table queries using SQL SELECT command
Make use of different aggregated functions to customize output

Topic / Concept

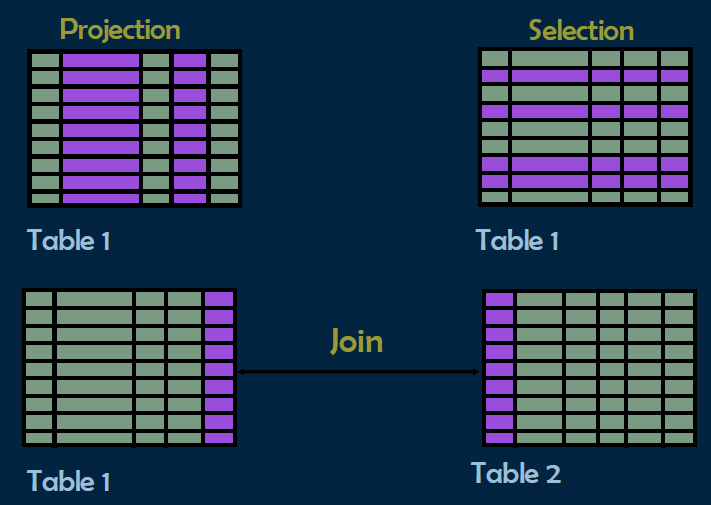

Capabilities of SQL Select statement

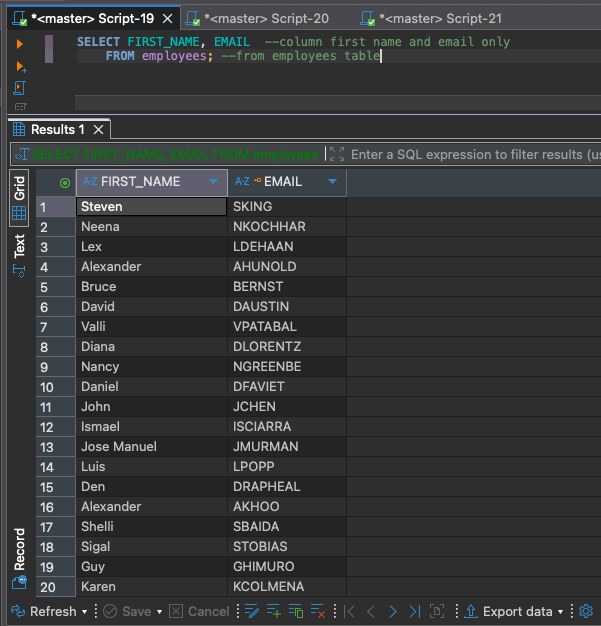

Projection (投影)

Use SELECT to select specific columns in a table. 使用 SELECT 選定table 中特定的某一些column .

Example:

SELECT FIRST_NAME, EMAIL  --column first name and email only
    FROM employees; --from employees table

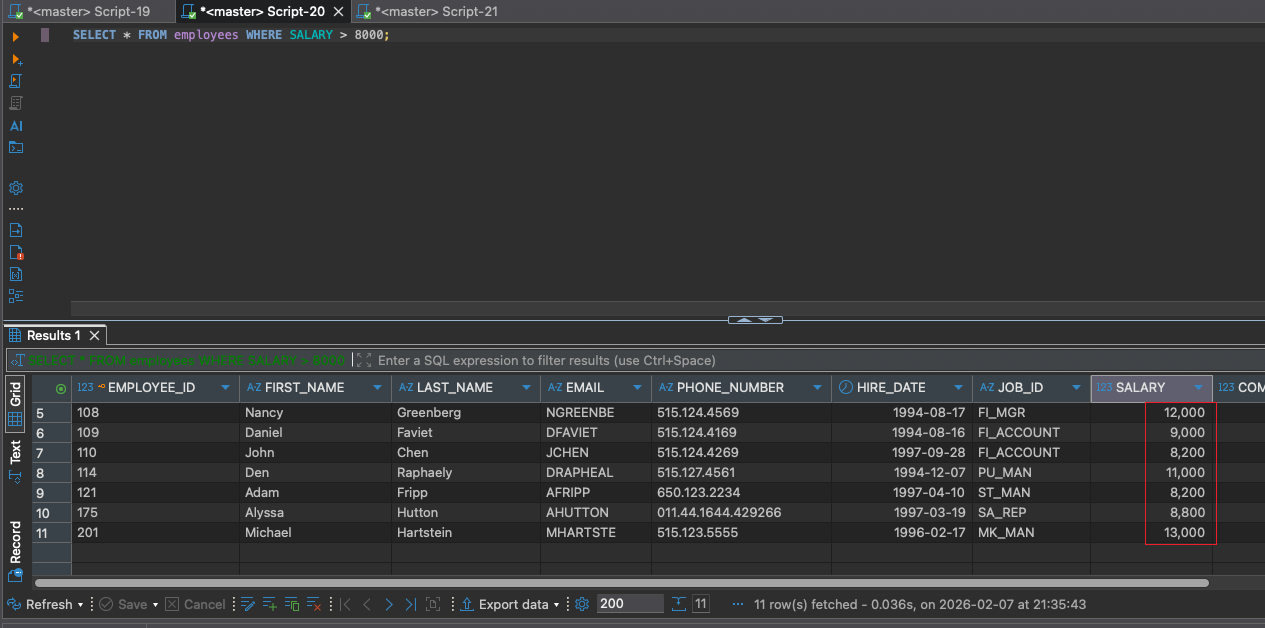

Selection (選擇)

Filter data (rows) based on specific condition. 通過特定的條件來篩選符合要求的數據（rows）

Example:

SELECT * FROM employees WHERE SALARY > 8000;
--select  all  from {table_name} where {condition};

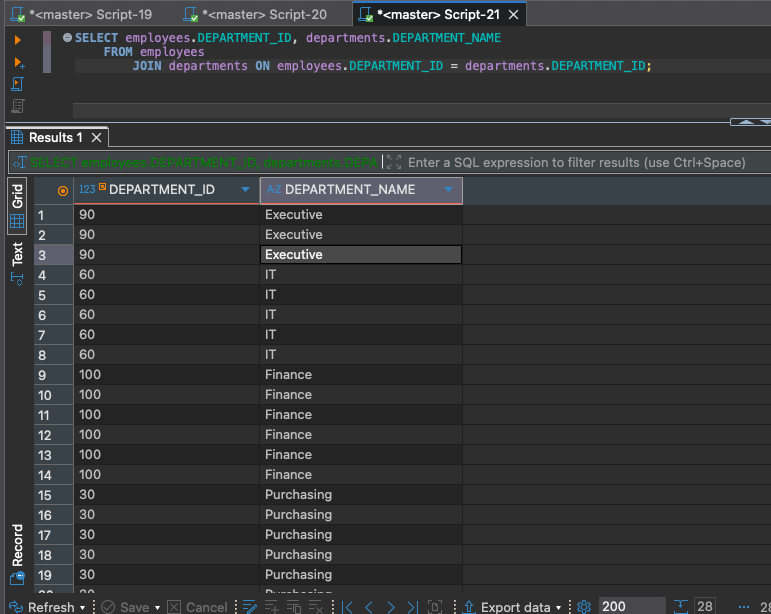

Join (連接)

Two different tables are linked together based on a common field/column (such as ID) and merged into a single set of data. 將兩張不同的表，基於某個共同的欄位（如 ID）關聯起來，合併成一組數據。

Example:

SELECT employees.DEPARTMENT_ID, departments.DEPARTMENT_NAME
    FROM employees
        JOIN departments ON employees.DEPARTMENT_ID = departments.DEPARTMENT_ID;

其它還有 1. INNER JOIN 2. LEFT JOIN 3. RIGHT JOIN 4. FULL OUTER JOIN

請參閱文檔: [[JOIN TABLE]]

Select Statement

Used for queries on single or multiple tables

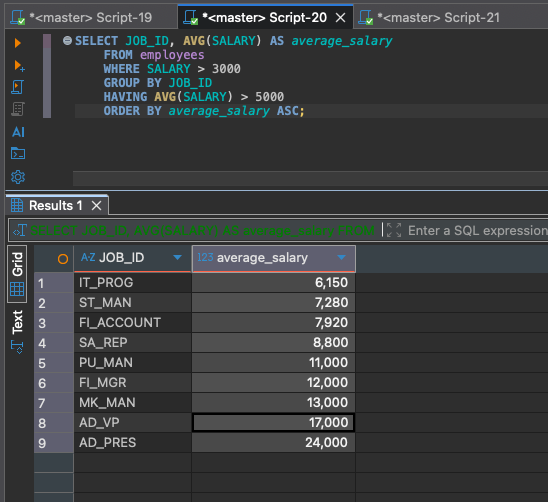

Clauses of the SELECT statement

SELECT JOB_ID, AVG(SALARY) AS average_salary
    FROM employees
    WHERE SALARY > 3000
    GROUP BY JOB_ID
    HAVING AVG(SALARY) > 5000
    ORDER BY average_salary ASC; --DESC 是從大到小

SQL Operators

SQL operators are symbols or keywords used to perform operations on data in SQL queries

Arithmetic Operators

Arithmetic Operators in SQL are used to perform mathematical operations on numeric data types in SQL queries.

symbol	meaning	example
+	Addition
-	Subtraction
*	Multiplication
/	Division
%	Modulus

Example:

SELECT EmployeeName, Salary, Bonus,
    Salary + Bonus AS Total_Income, --Addition
    Salary - Bonus AS After_Bonus_Deduction, --subtraction
    Salary * 0.10 AS Ten_Percent_Tax, --multiplication
    Salary / 30 AS Dayly_Salary, --division
    Salary % 10000 AS Salary_Remainder --modulus
FROM Employees;

Comparison Operators

Comparison Operators in SQL are used to compare on expression's value to other expressions.

symbol	meaning	example
=	Equal
!=	Not Equal
<>	less than and great than
<	Less than
>	Great than
>=	Great than or Equal
<=	Less than or Equal

SELECT *
    FROM Students
    WHERE Score >=70;


SELECT *
    FROM Students
    WHERE Score <=50;

SELECT *
    FROM Students
    WHERE Age <> 18;

Logical Operators

Logical Operators in SQL are used to combine or manipulate conditions in SQL queries to retrieve or manipulate data based on specified criteria.

symbol	meaning	example
AND	result should be True
OR	True or False
NOT	False

Example:

--AND
SELECT *
    FROM Students
        WHERE Score >=70 AND Age >=18; --both conditions must be true


--OR
SELECT *
    FROM Students
        WHERE Score <60 OR Age <18; --either conditioncan be true

--NOT
SELECT *
    FROM Students
        WHERE NOT Score >=50;

Bitwise Operators

Compound operators combine an operation with assignment. These operators modify the value of a column and store the result in the same column in a single step

symbol	meaning	example
&	AND
\|	OR
^	XOR
~	NOT
<<	Left move
>>	Right move

8 bit

\(2^7 - 2^6- 2^5- 2^4- 2^3- 2^2- 2^1- 2^0\) \(128-64-32-16-8-4-2-1\)

Bit position (from left to right)	1	2	3	4	5	6	7	8
Binary number 170	1	0	1	0	1	0	1	0
Binary number 75	0	1	0	0	1	0	1	1
Compare	\(1\&0\)	\(0\&1\)	\(1\&0\)	\(0\&0\)	\(1\&1\)	\(0\&0\)	\(1\&1\)	\(0\&1\)
AND Result	0	0	0	0	1	0	1	0

00001010 = 2+ 8 = 10

Bit position (from left to right)	1	2	3	4	5	6	7	8
Binary number 170	1	0	1	0	1	0	1	0
Binary number 75	0	1	0	0	1	0	1	1
Compare	1\|0	0\|1	1\|0	0\|0	1\|1	0\|0	1\|1	0\|1
OR Result	1	1	1	0	1	0	1	1

11101011 = 128+ 64+32+8+2+1 = 235

Compound Operator

複合運算符 Compound operators combine an operation with assignment. These operators modify the value of a column and store the result in the same column in a single step.

symbol	meaning	example
+=
-=
*=
/=
%=

Example:

UPDATE stdudent
    SET score += 10
        WHERE studentID = 1;


UPDATE student
    SET score -= 10
        WHERE studentID = 2;

UPDATE student
    SET score /=2
        WHERE studentID = 3;

UPDATE student
    SET score *=2
        WHERE studentID =4;

Special Operators

BETWEEN .....AND .....
IN(....)
LIKE
IS NULL
EXISTS

The SQL IN Operator

The IN operator allows you to specify multiple values in a WHERE clause.
The IN operator is a shorthand for multiple OR conditions.

Syntax:

SELECT column_name(s) FROM table_name
    WHERE column_name IN (value1,value2,.....);

Example:

--rerturn all customes from `Germany`, `France` or 'UK'

SELECT * FROM Customers
    WHERE Country IN ('Germany','France','UK');

Nature language :

從 Customers 表中選擇所有記錄，條件是這些記錄的 Country 欄位是德國、法國或英國。

Select all records from the Customers table where the Country column is include Germany, France,UK.

The SQL `BETWEEN` Operator

The BETWEEN operator selects values within a given range. The values can be numbers, text, or dates.
The BETWEEN operator is inclusive: begin and end values are included.(起始值和結束值都包含在內)

Syntax:

SELECT column_name(s) FROM table_name
    WHERE column_name BETWEEN values1 AND values2;

Example:

-- selects all products with a price between 10 and 20

SELECT * FROM Products
    WHERE Price BETWEEN 10 and 20;

The SQL `LIKE` Operator

LIKE 運算子用於在 WHERE 子句中搜尋資料行中的指定模式 (Pattern)。
通常與萬用字元 (Wildcards) 搭配使用：
- %：代表零個、一個或多個字元。
- _：代表單一個字元。

Syntax:

SQL

SELECT column_name(s) FROM table_name
    WHERE column_name LIKE pattern;

Example:

SQL

-- return all customers whose name starts with 'a'
SELECT * FROM Customers
    WHERE CustomerName LIKE 'a%';

Natural Language:

從 Customers 表中選擇所有記錄，條件是 CustomerName 欄位的值是以 "a" 開頭。

Select all records from the Customers table where the CustomerName column starts with the letter "a".

The SQL `IS NULL` Operator

IS NULL 運算子用於測試空值 (NULL values)。

Warning

不能使用比較運算子（如 = 或 !=）來測試 NULL，必須使用 IS NULL 或 IS NOT NULL。

Syntax:

SQL

SELECT column_name(s) FROM table_name
    WHERE column_name IS NULL;

Example:

SQL

-- return all customers that do not have an address listed
SELECT * FROM Customers
    WHERE Address IS NULL;

Natural Language:

從 Customers 表中選擇所有記錄，條件是 Address 欄位沒有數值（為空值）。

Select all records from the Customers table where the Address column has a NULL value.

The SQL `EXISTS` Operator

EXISTS 運算子用於測試子查詢 (Subquery) 是否傳回任何記錄。
如果子查詢傳回一筆或多筆記錄，則傳回 TRUE。

Syntax:

SQL

SELECT column_name(s) FROM table_name
WHERE EXISTS (SELECT column_name FROM table_name WHERE condition);

Example:

SQL

-- return suppliers with a product price less than 20
SELECT SupplierName FROM Suppliers
WHERE EXISTS (SELECT ProductName FROM Products
              WHERE Products.SupplierID = Suppliers.supplierID
              AND Price < 20);

Natural Language:

從 Suppliers 表中選擇供應商名稱，條件是該供應商在 Products 表中有至少一項產品價格低於 20。

Select the SupplierName from the Suppliers table if the subquery returns any records (i.e., if there is at least one product with a price less than 20 for that supplier).

Note

SQL 聚合函數（Aggregate Functions）用於對一組值執行計算，並傳回單一值。除了 COUNT(*) 之外，聚合函數都會忽略空值 (NULL)。

Warning

Operand data type varchar is invalid for sum operator.

The SQL `COUNT()` Function

COUNT() 函數傳回符合指定條件的資料列數目。

Syntax:

SELECT COUNT(column_name) FROM table_name
    WHERE condition;

Example:

-- return the total number of products
SELECT COUNT(ProductID) FROM Products;
    WHERE Price > 20;

The SQL `SUM()` Function

The SUM() returns the total sum of a numerical column

Syntax :

SELECT SUM(column_name) FROM table_name
    WHERE condition;

Example:

SELECT SUM(LAST_NAME) FROM employees
    WHERE DEPARTMENT_ID = 100;

The SQL `MIN()` and `MAX()` Function

The MIN() returns the smallest value within the selected column
The MAX() returns the largest value within the selected column

Example:

--MAX
SELECT MAX(SALARY)
    FROM employees;


--MIN
SELECT MIN(SALARY)
    FROM employees;

The SQL `AVG()` Function

The AVG() function returns the average value of a numerical column

Example:

SELECT AVG(SALARY)
    FROM employees;

Using Aliases With a Space Character

If you want your alias to contain one or more spaces, like "My Great Products", surround your alias with square brackets or double quotes.

Example

Using[square brackets] for aliases with space characters:

SELECT ProductName AS [My Great Products]
    FROM Products;

Using "double quotes" for aliases with space characters:

SELECT ProductName AS "My Great Products"
    FROM Products;

SQL `SELECT DISTINCT` Statement

The SELECT DISTINCTstatement is used to return only distinct (different) values.
SELECT DISTINCT 语句的确是用来返回某个列中不重复的值。它确保返回的结果集中没有重复项。

Syntax:

SELECT DISTINCT column1, column2, ...
    FROM table_name;

Example:

Select all the different countries from the "Customers" table:

SELECT DISTINCT Country
    FROM Customers;

References:

MSSQL Group Functions - https://learn.microsoft.com/zh-cn/sql/t-sql/functions/aggregate-functions-transact-sql?view=sql-server-ver17
