Module 8 Inheritance

2026-04-23 12:02

Tags: #java

Author: Duke Hsu

1 - Key Concepts

1.1 Inheritance definition

Concept:

Inheritance is a mechanism where one class (Subclass) acquires the properties and behaviors (fields and methods) of another class (Superclass). Think of it as a "genetic" transfer of code.

• Superclass (Parent): The class being inherited from. • Subclass (Child): The class that inherits from the parent. • Keyword: We use extends to create this link. • Relationship: It follows the is-arule (e.g., a Dog is-a Animal).

Code Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

//Parent class
class Animal{
    void eat(){

        System.out.println("This animal is eating.");

    }
}

//Child class inherits from Animal
class Dog extends Animal{
    void bark(){
        System.out.println("Woof! Woof!!")
    }
}

Class note

1
2

Inheritance  allows one class to acquire the properties and methods of another class.
Supper class and subclass.   Inheritance in Taglog  = mana

1.2 Using extends Keyword

Concept:

The extends keyword is used to inherit from a parent class. We use extends to create this link.

Code Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

//Parent class
class Animal{
    void eat(){

        System.out.println("This animal is eating.");

    }
}

//Child class inherits from Animal
class Dog extends Animal{
    void bark(){
        System.out.println("Woof! Woof!!")
    }
}

1.3 Method Overriding

Concept:

Method Overriding occurs when a subclass provides a specific implementation for a method that is already defined in its parent class. The method signature (name and parameters) must be exactly the same.

• Why use it? To allow a child class to behave differently while using the same method name.

Code Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

class Animal {
    void makeSound() {
        System.out.println("Generic animal sound");
    }
}

class Dog extends Animal {
    @Override // Good practice to use this annotation
    void makeSound() {
        System.out.println("Bark!"); // Overriding the parent's method
    }
}

Class note:

1

Method overriding allows a child class to provide its own version of a parent method

1.4 The super Keyword

Concept:

The super keyword is a reference variable used to refer to immediate parent class objects. It acts as a bridge to reach the "hidden" or "original" parts of the parent class.

Common uses:

1. super(): Calls the parent's constructor
2. super.method(): Calls a method in the parent class that might have been overridden in the child .

Code Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

//super class
class Character{
    String name;
    Character(String name){
        this.name = name;

    }
}


//child class
class Player extends Character{
    int health;
    Palyer(String name , int health){
        super(name); //use super to pass 'name' to the Character constructor
        this.health = health;

    }
}

Class note:

1
2
3
4
5
6

`super `refers to the parent class object.

Uses
- Call parent constructor
- Access parent methods
- Access parent variables

1.5 Is-A Relationship

Concept:

• Inheritance follows the Is-A relationship

Example:

Dog Is-A Animal Student Is-A Person

Class diagram symbol for inheritance

• UML Symbol: Child -----> Parent

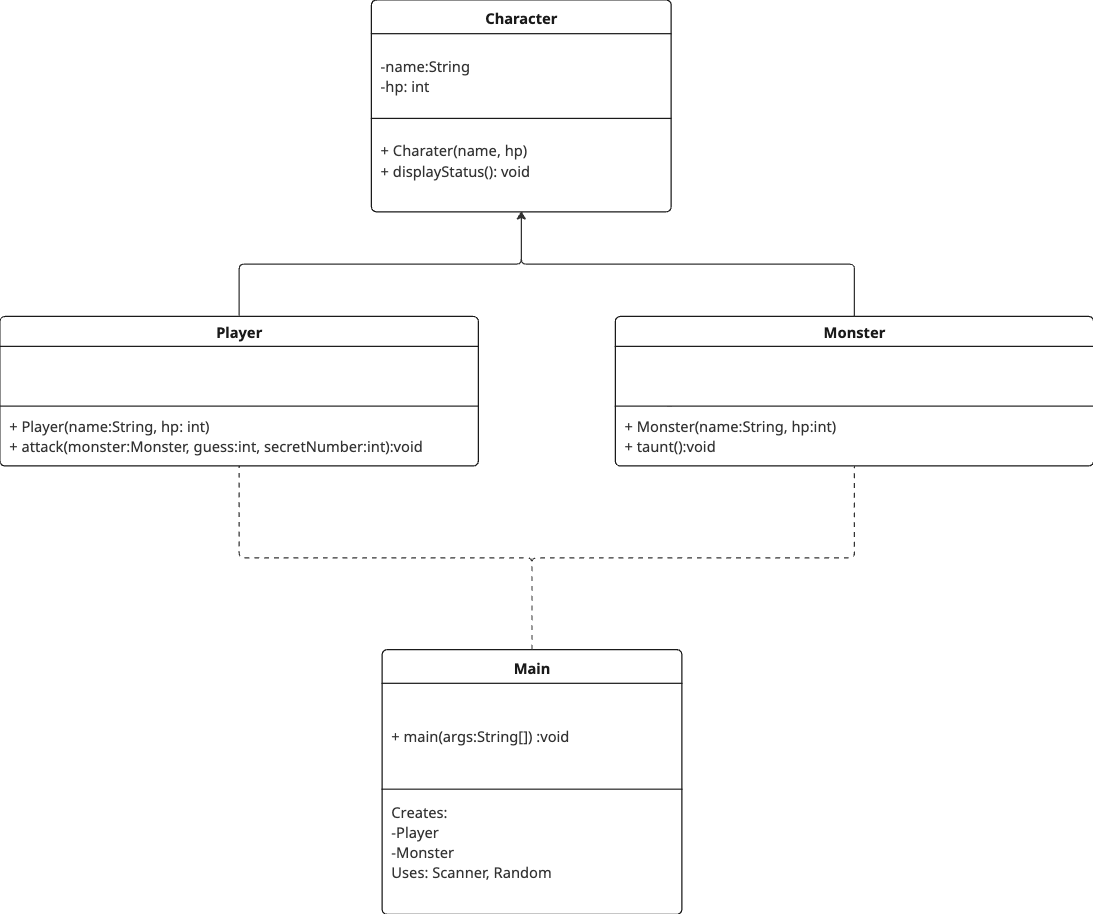

Example UML with Is-A Relationship

1.5.1 Has-A Relationship

Concept:

In Java, a Has-A relationship is also known as Association. It occurs when one class uses another class as a member variable . Unlike Is-A (Inheritance) , which focuses on hierarchy, Has-A focuses on Code Reusability and Modularity.

Types of Has-A relationship

There are two main ways to implement a Has-A relationship, based on how strongly the objects are tied together:

A. Aggregation ( Weak Association)

The child object can exist independently of the parent.

• Real-world Example: A school has Students. If the school closes, the students still exist
• UML Symbol: Empty diamond (‬‭‬‬‭‬‬‭‬‬‭‬ \(\diamond \text{---}\) ) ‬‭‬‬‭‬

B. Composition (Strong Association)

The child object cannot exist without the parent. It represents a "death relationship ".

• Real-world Example: A human has a Heart. If the human dies, the heart (in a functional sense) ceases to function within that context.
• UML Symbol: Filled diamond (\(\blacklozenge \text{---}\))

Why use Has-A

• Flexibility: You can changer the behavior of a class at runtime by swapping the internal object.
• Low Coupling: Classes remain independent. A change in the Engine class doesn't necessarily force a rewrite of the Car class.
• Maintenance: Smaller, focused classes are easier to debug than one giant inherited tree.

UML

Code Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

// 被擁有的類別
class Weapon {
    String name = "基礎長劍";
    int damage = 10;
}

// 擁有的類別 (Has-A)
class Player {
    String name;
    // 這就是 Has-A：Player 擁有一個 Weapon 類別的引用
    Weapon myWeapon;

    Player(String name) {
        this.name = name;
        this.myWeapon = new Weapon(); // 在初始化時建立關聯
    }

    void attack() {
        System.out.println(name + " 使用 " + myWeapon.name + " 造成了 " + myWeapon.damage + " 點傷害");
    }
}

Summary Table

1.6 Designing Class Hierarchies

Proper hierarchy improves reusability .

Concept:

Designing a hierarchy means organizing classes from most general to most specific . In UML diagrams, an arrow points from the Child to the Parent to represent inheritance.

Summary Table:
