Activity: Assignment Model
Problem:

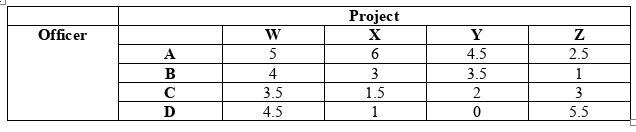

A Faculty Association of a certain college has four fund raising projects to work, which are to be assigned to each of the four officers. Given the opportunity profit( in thousand pesos) table below. What should be the best assignments?

Opportunity profit = Maximum profit

Maximization

The Hungarian Method was originally designed to solve minimization problems. Therefore, "Step 0: Building the Loss Matrix" must be performed first before proceeding.

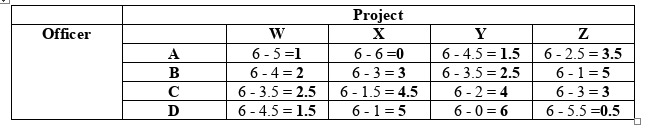

Step 0: Loss Matrix / Regret

Loss Matrix = Maximum value – Each cell values

Max value is 6

Step 1: Row Reduction

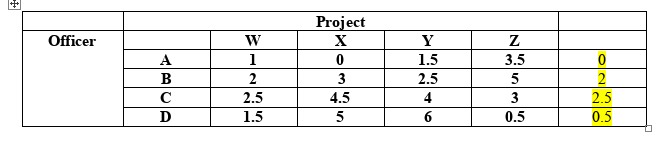

Find minimum value in each row. Subtract that value from each value in the same row .

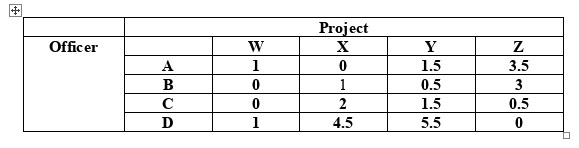

Iteration a

Step 2: Column  Reduction

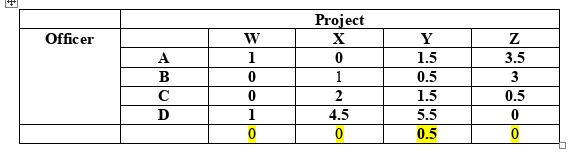

Find minimum value in each column . Subtract that value from each value in the same column.

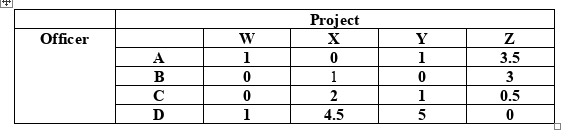

Iteration b

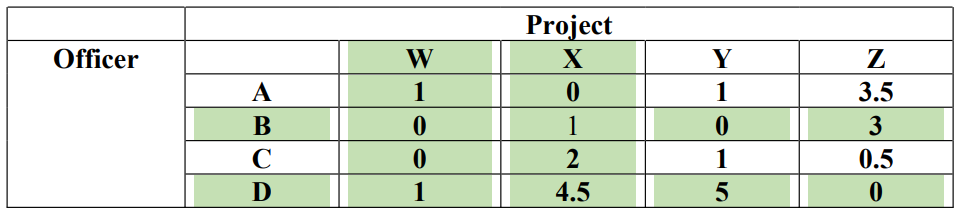

Step 3 - Cover All Zeros with Lines

Draw the minimum number of lines needed to cover all zeros. If number of lines = number of rows, you are done . Otherwise move to step 4 .



4 Lines = 4 Rows  We are done . Jump to Step 5

Step 4: Revise the Matrix

Find the smallest uncovered values. Subtract this from all uncovered values and add it to values at intersection of lines. Then repeat step 3.
- Cells with no line through them: subtract the smallest uncovered number
- Cells at the crossing point of two lines: add the smallest uncovered number
- Cells with exactly one line: keep the number as it is

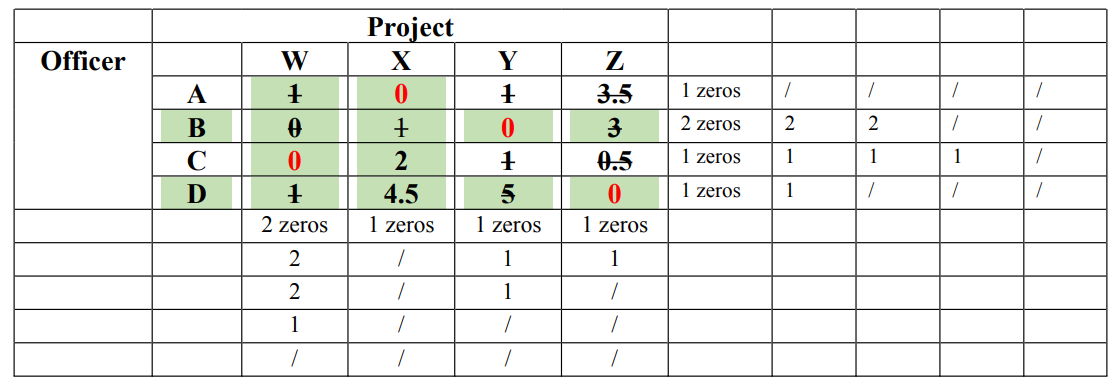

Step 5: Circle the assignment from row or column with minimum number of zeros

The Assignments:

Officer A to project X            6
Officer B to project Y            3.5
Officer C to project W            3.5
Officer D to project Z            5.5

Maximum Profit is : 6+3.5+3.5+5.5 = 18.5

18, 500.00 Pesos

---
